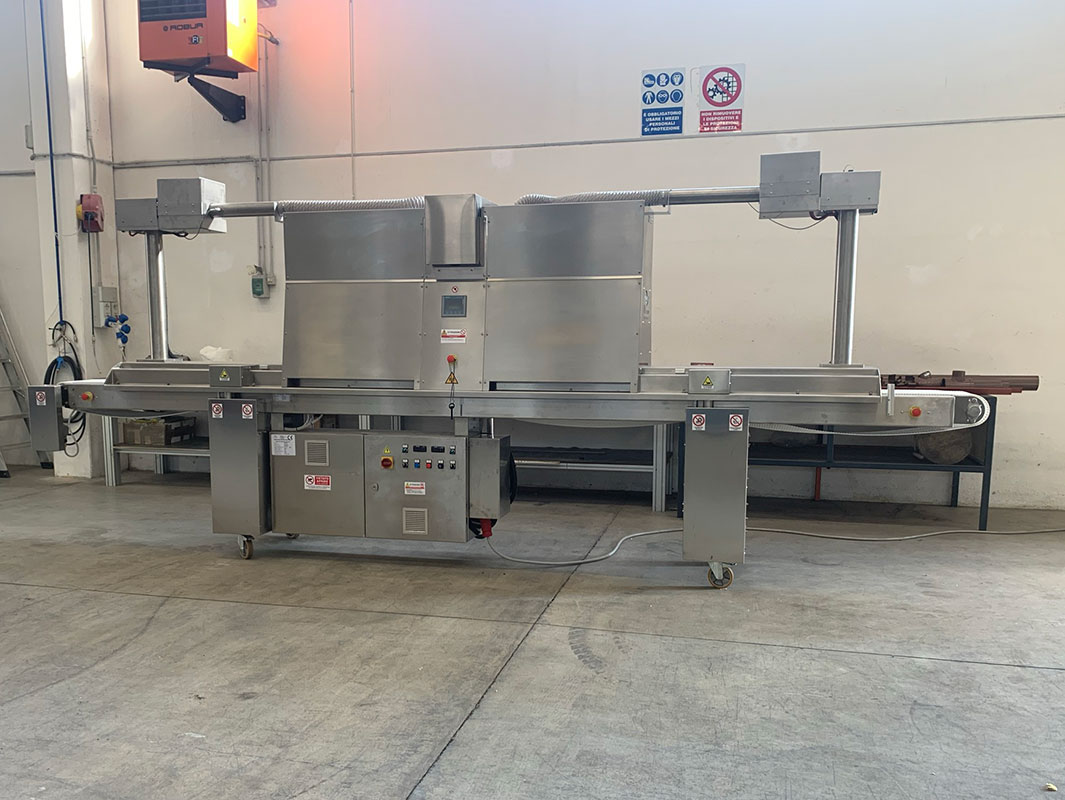

WAVELINE

Technical Characteristics

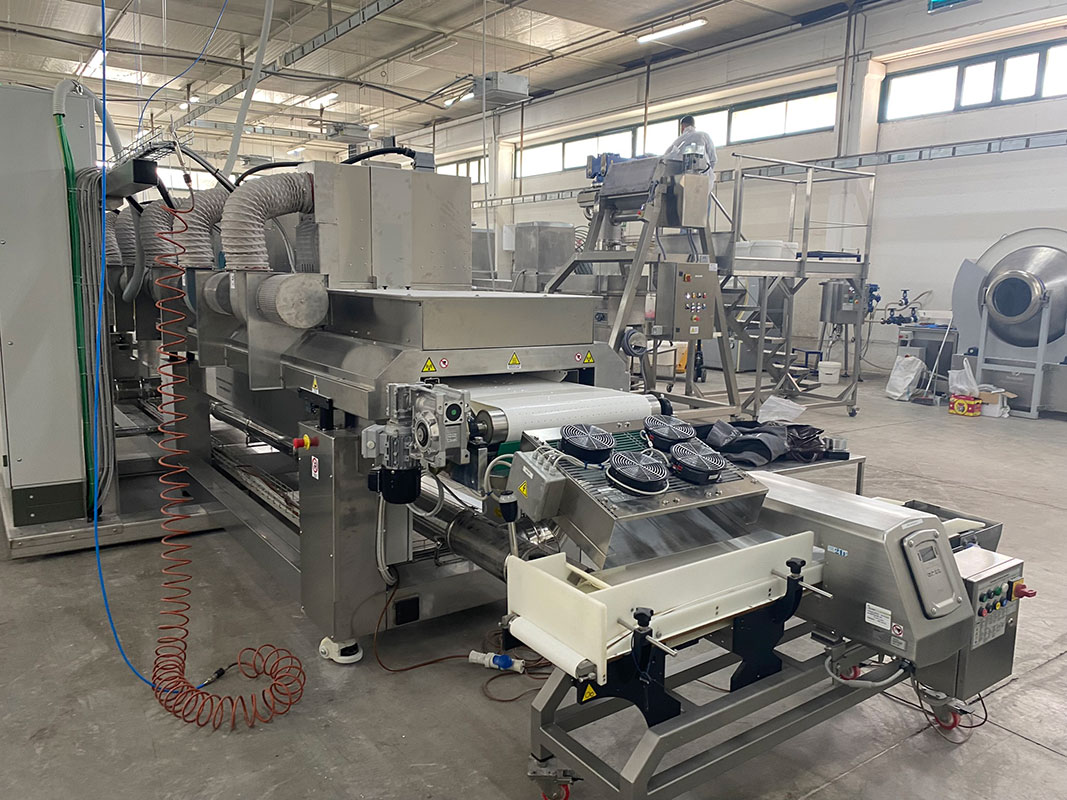

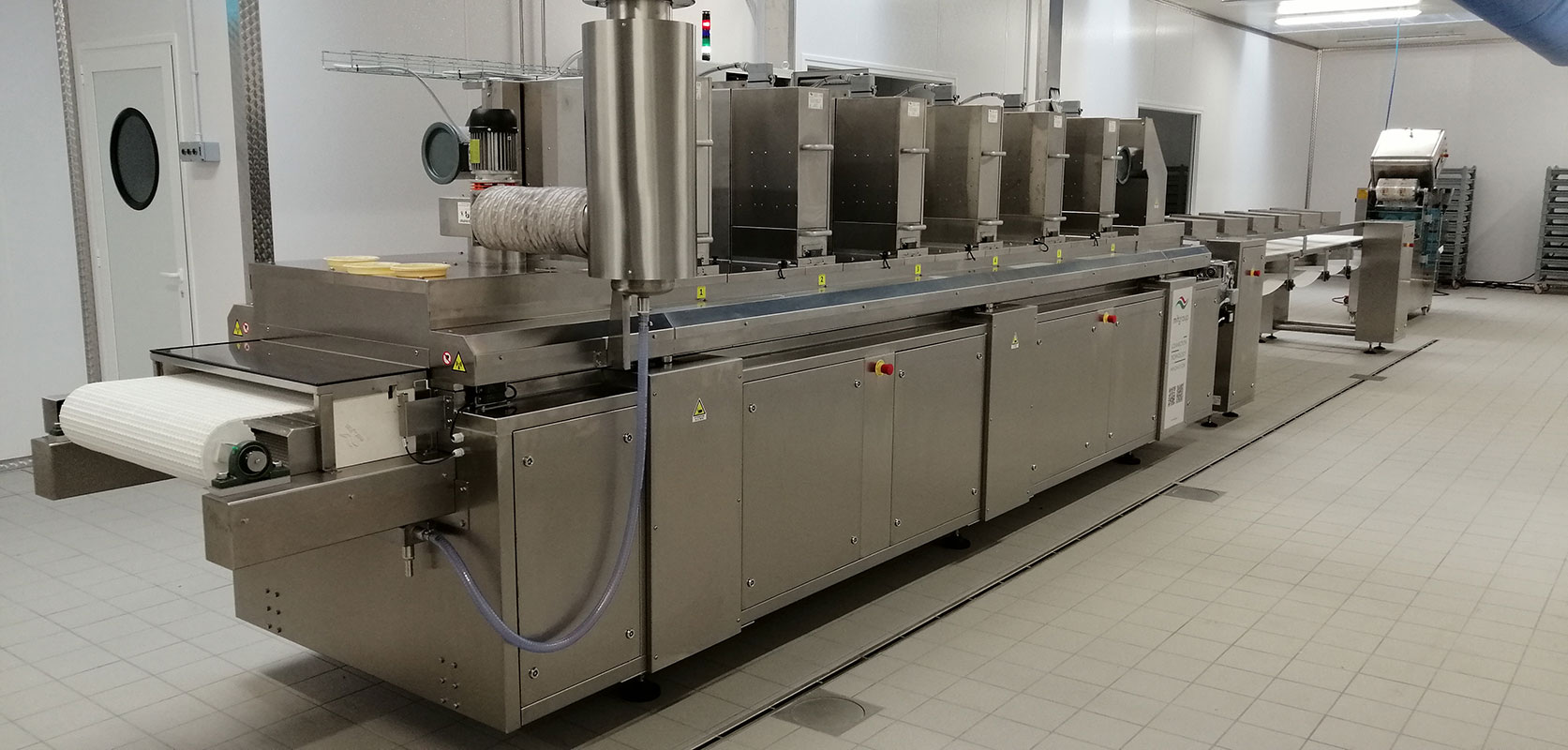

• Tunnel for continuous process with combination of microwave, hot air and/or infrared
• Suitable for thermal processes from 50° to 130°C
• High quality insulation with low biopersistence materials
• The thermal technology used is designed to work at high efficiency and guarantee a reduction in energy costs, a significantly faster temperature ramp and temperature uniformity on the products
• Uniformity and thermal stability along the entire tunnel
• Automatic lifting of the chamber for maintenance or production change
• Optional: automatic lifting of the heating chamber in case of emergency stop
• Easy to use operating menu
• Programmable controllers with HMI (Human Machine Interface) displays enable intuitive operation and comprehensive machine diagnostics
• Adaptable to the specific processing requirements of the customer

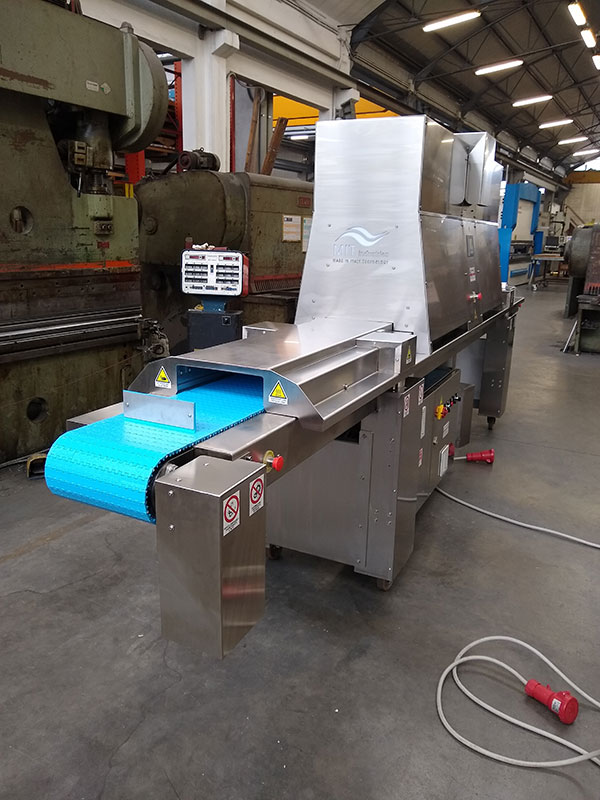

Stainless steel tunnel for food use with:

• Useful loading width starting from 350 mm
• Useful loading height starting from 20 mm

Process temperature from ambient to 130° C

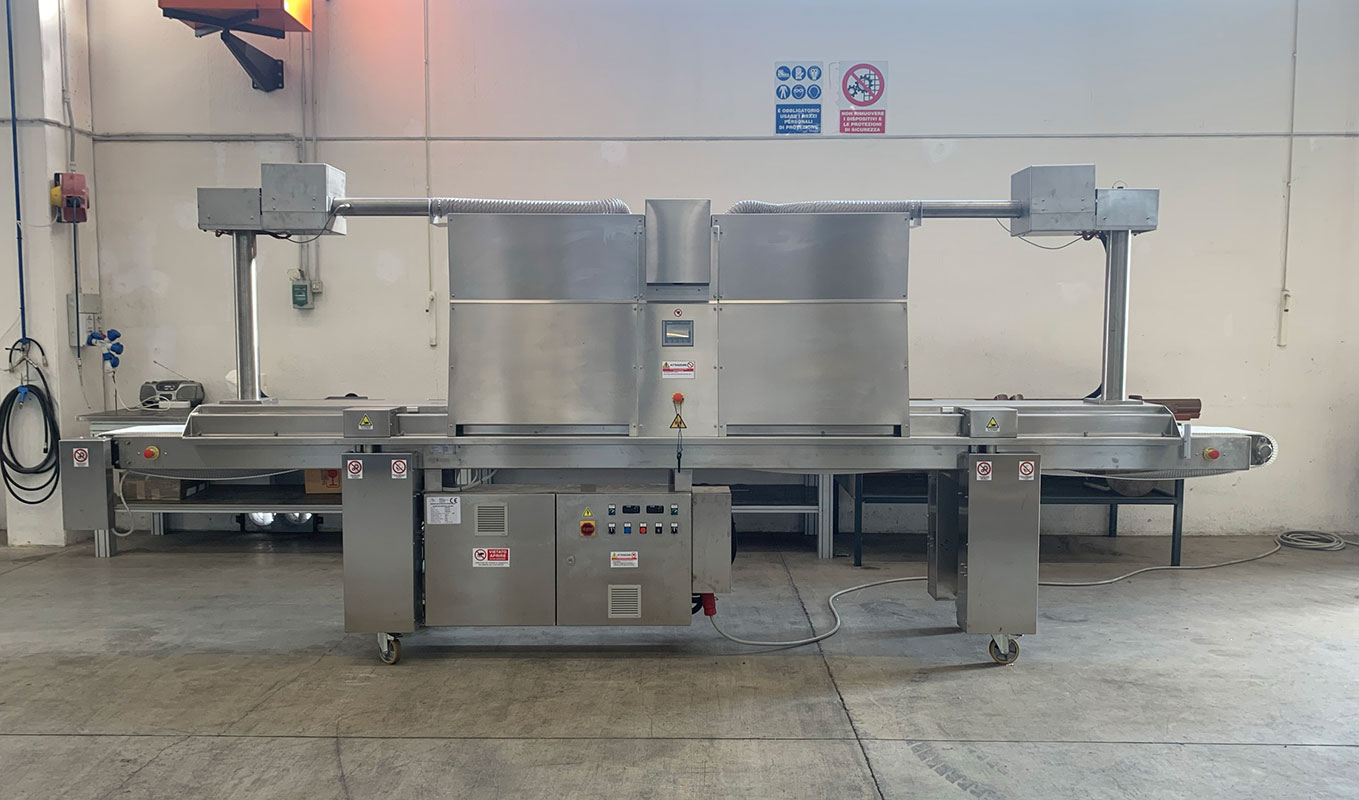

WAVELINE tunnels implement continuously adjustable microwave technology.

Microwaves can be combined with convection or infrared radiation heating.

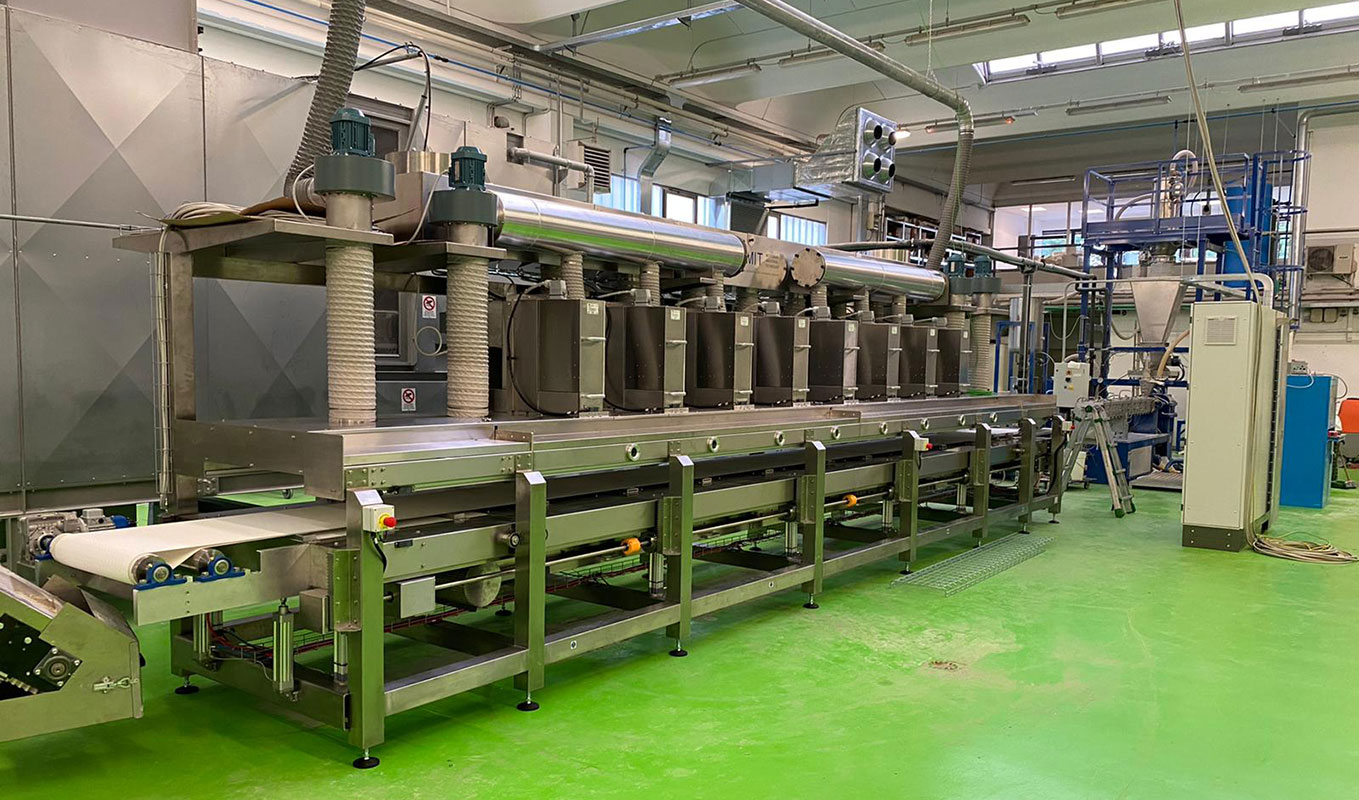

The microwave application system is adapted to the width of the conveyor belt and can therefore be based on power supply systems or slot waveguide systems.

Generally speaking, the microwave setup is designed to be maintained even by non-specialized operators.

Power supply application system

Slot waveguide application system

Magnetic field attenuation systems and safety equipment:

The oven is equipped with special attenuation stages of the input and output electromagnetic field.

The EWA attenuation system is patented and does not require maintenance, as it does not use liquid systems.

The tunnels, which can be completely opened for maintenance, are set up with all the safety systems necessary to contain the electromagnetic field.

Thanks to the EWA systems and shielding, the tunnels operate continuously at emission levels well below those permitted by law, allowing the machinery to fall into category 0.

Precedente Successivo

WAVEX tunnels are equipped with lifting systems that allow the machinery to be opened for complete access to the work area. Thanks to this equipment, maintenance is carried out in total safety, in a very short time and without dismantling operations.

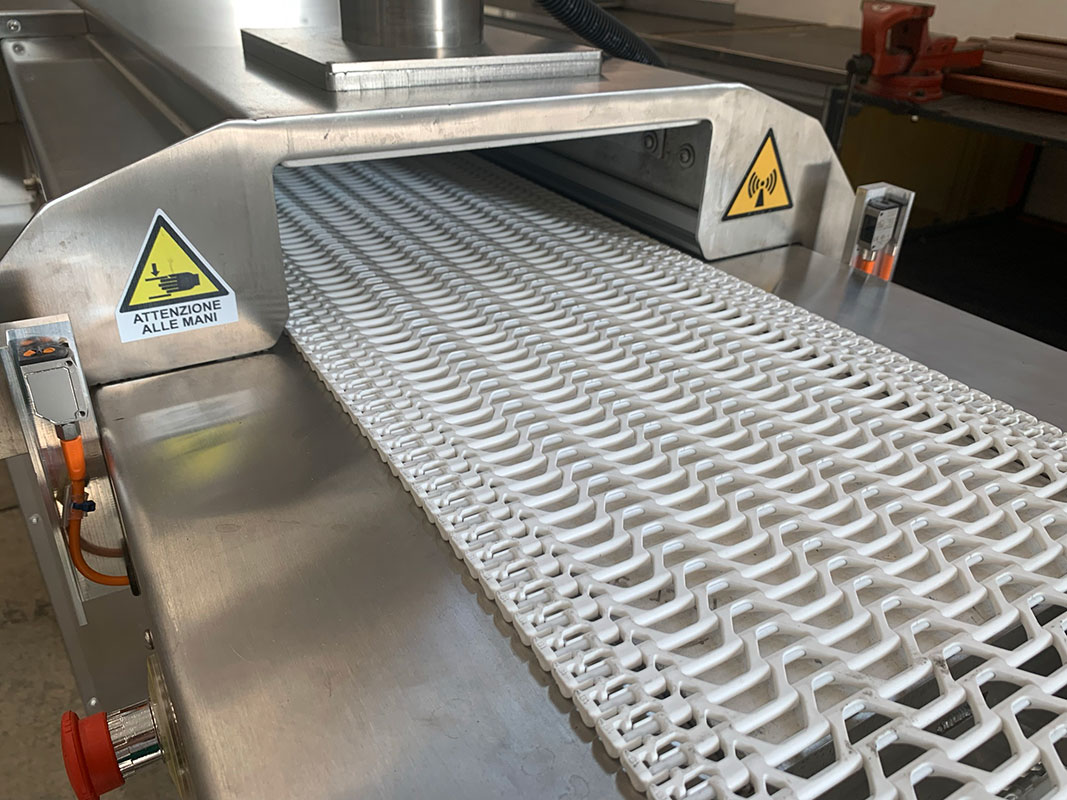

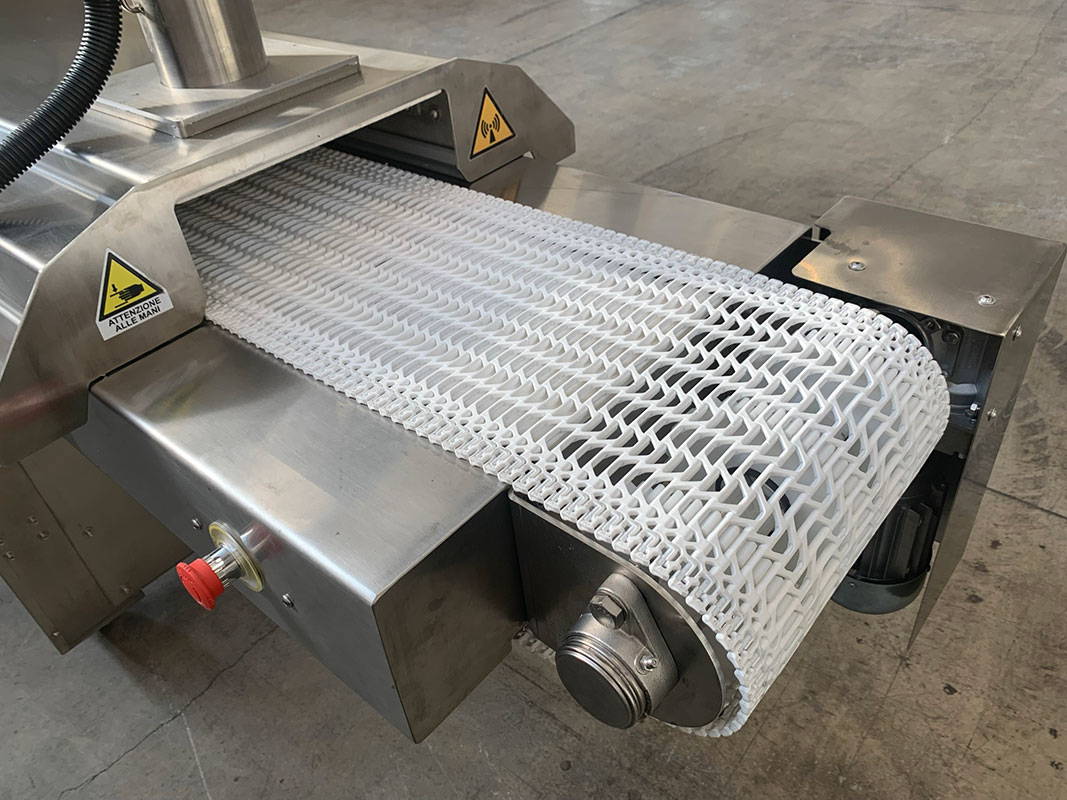

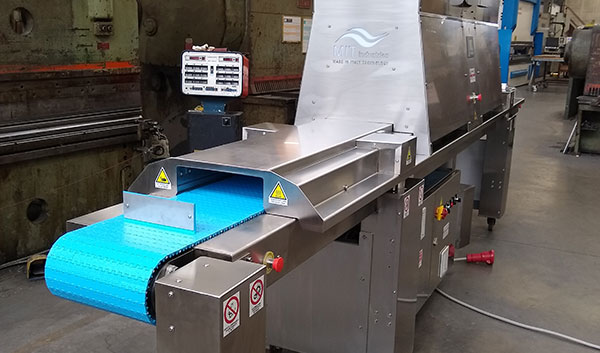

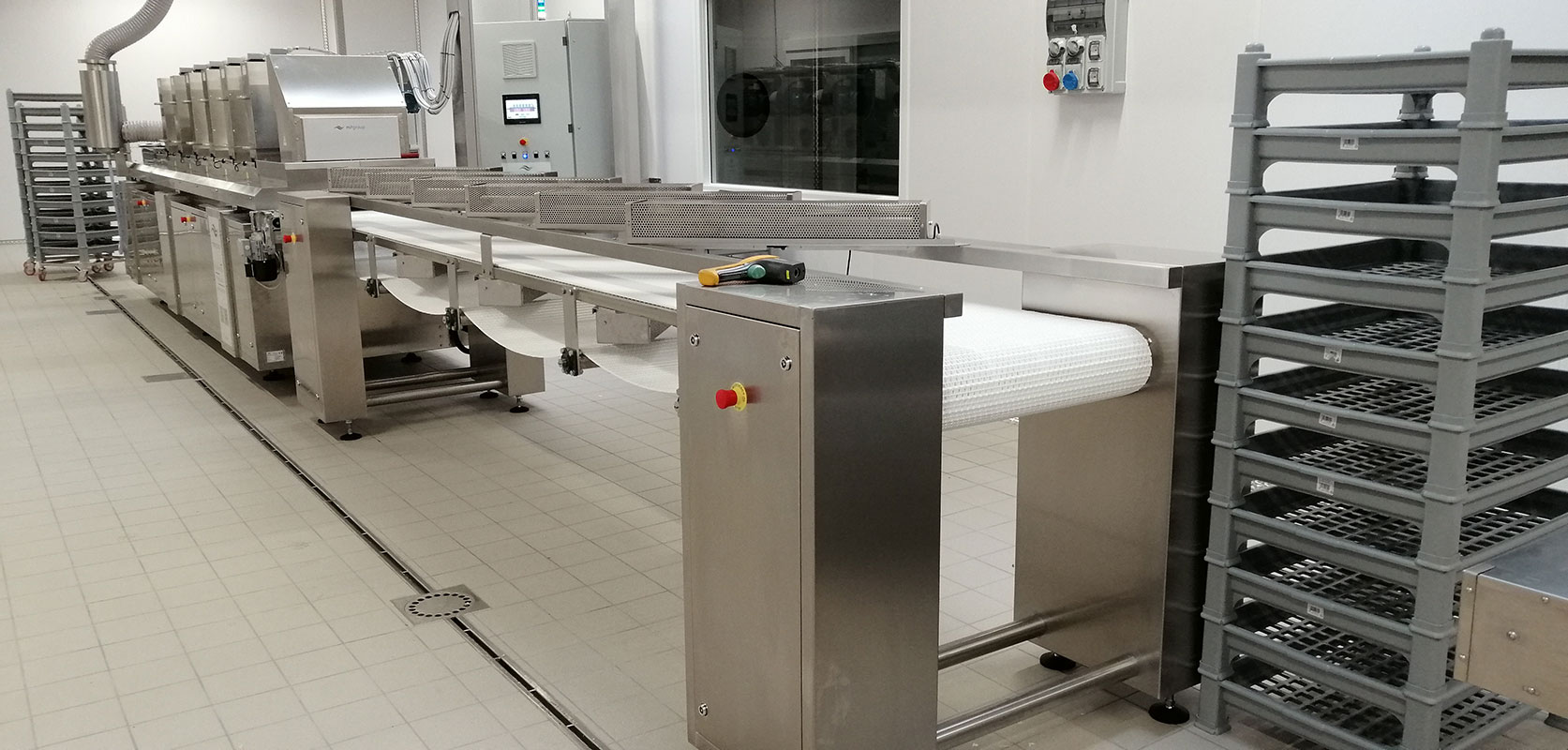

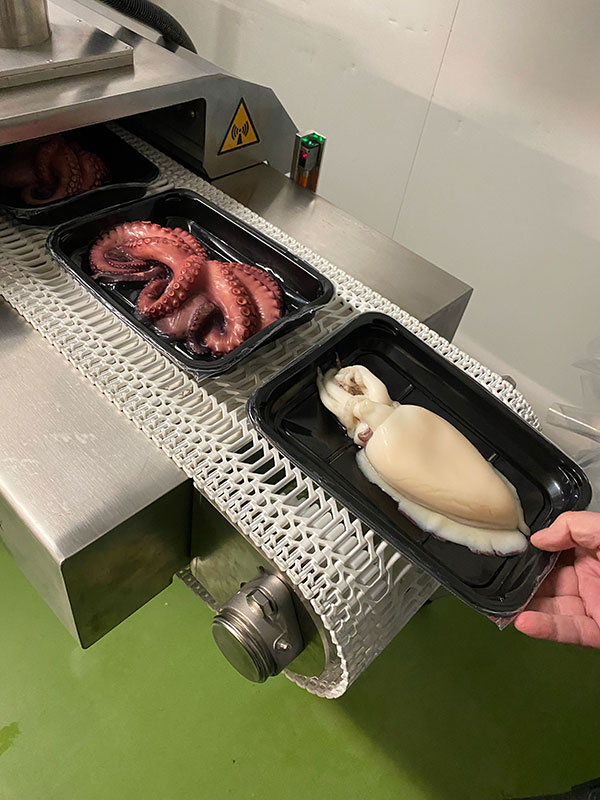

The conveyor belt is customized to be suitable for the type of process required and the technology used.

Thanks to our in-depth experience and numerous studies, we can offer solutions that include a wide range of belts compatible with microwave use. We select the best conveyor belts made with the latest generation raw materials, of high quality and durability.

Precedente Successivo

The oven is equipped with interfacing systems with the customer's loading and unloading devices.

Technical Plus...

• A single oven for many uses
• Built in stainless steel and with high quality finishes to last over time
• Guarantee of a stable and uniform heating process
• Adaptable to the specific processes requested by the customer
• Easy to use
• Safe, easy to maintain even by non-specialised operators
• High energy saving
• Lower environmental impact
• Instant on and off
• Optimization of production time
• Certifiable digitalization Industry 4.0

...e Technological

CONSUMPTION - Respecting the GO GREEN concept, with MIT MULTI-TECHNOLOGY OVENS you can save energy and reduce the environmental impact of production. The combination of heating technology based on electricity, therefore renewable, allows for high energy efficiency and reduces process times and consumption. In particular, the particularly fast treatment times and the characteristics of the microwave process allow for a reduction in the size of the plants, savings on fixed structural costs and high production flexibility.

SAFETY - The oven is extremely simple, safe and secure to use. Thanks to the accuracy of the construction of the screens, the microwave emission limit is lower than the limit expected for any oven for domestic use, therefore no specific training is required for operators.

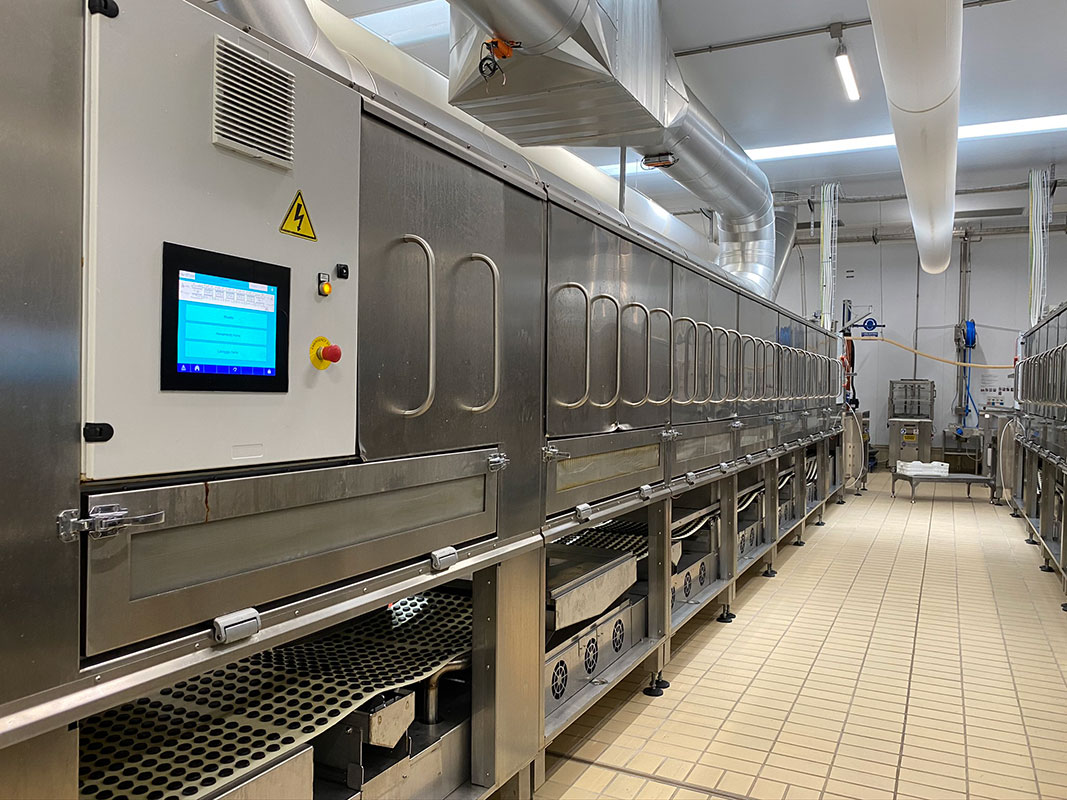

MANAGEMENT AND CONNECTIVITY - The oven is programmable from the operator panel, easy to use touch screen, and can store the maximum number of recipes. The front panel is equipped with a visual signaling system with various colors that indicates the progress or status of the oven.

MAINTENANCE - The oven is simple and easy to maintain; ordinary cleaning can be carried out safely by a single operator.
