Ares is a range of professional ovens that can be used in commercial kitchens, artisanal laboratories and industrial laboratories to carry out pasteurisation, cooking, heating, reheating and defrosting processes.
The Ares microwave oven has been designed for both professional and industrial use in the food sector and, more generally, for all processes requiring thermal treatment, such as cooking, pasteurisation, reheating, drying, but also defrosting large blocks of frozen products.
Ares is a combined-technology oven, meaning that users can create recipes by selecting both microwaves and conventional heating using electric heating elements. The two energy sources can be selected one at a time or both together. This has been designed to provide maximum flexibility of use and therefore the best result for the user.
Process flexibility for professional use, product development and small-scale production.
The system applies microwave energy through specially designed power supplies installed in the upper section of the treatment area, optimising uniform energy distribution across the product and simplifying maintenance operations.
The main treatment is carried out using microwave technology, which allows the product to be heated directly inside the chamber.
The system consists of two 4 kW microwave power supplies, providing a total installed microwave power of 8 kW. Each power supply incorporates four 1 kW magnetrons, and the power can be adjusted via the operator panel.
In addition to microwaves, the batch oven features a static chamber heating system using electric heating elements.
The temperature is measured by a probe and automatically regulated according to the value set by the operator, up to a maximum adjustable temperature of 200 °C.

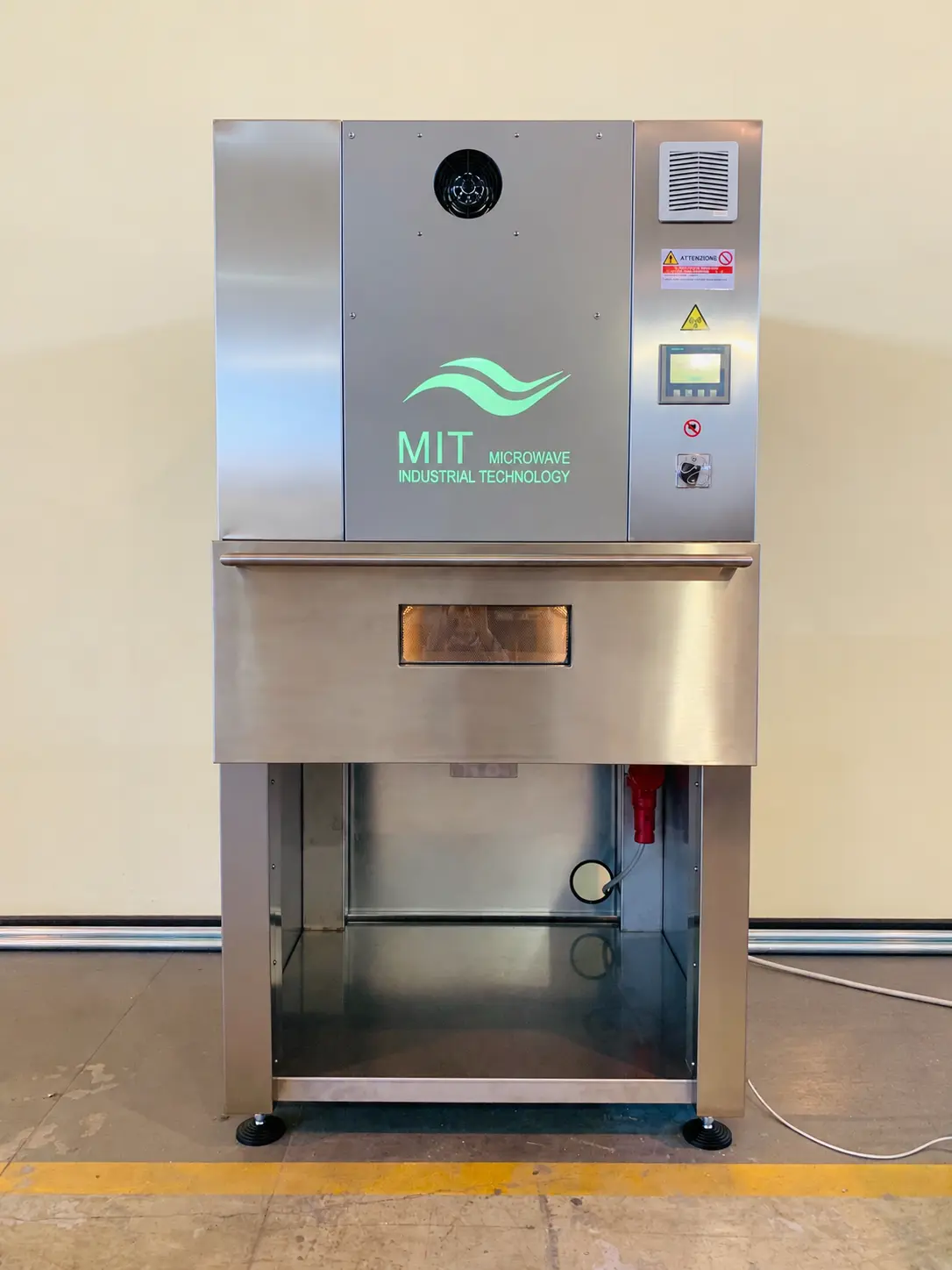

An additional heating element dedicated to the grill function is located in the upper section of the chamber, extending the range of possible treatments for the product.

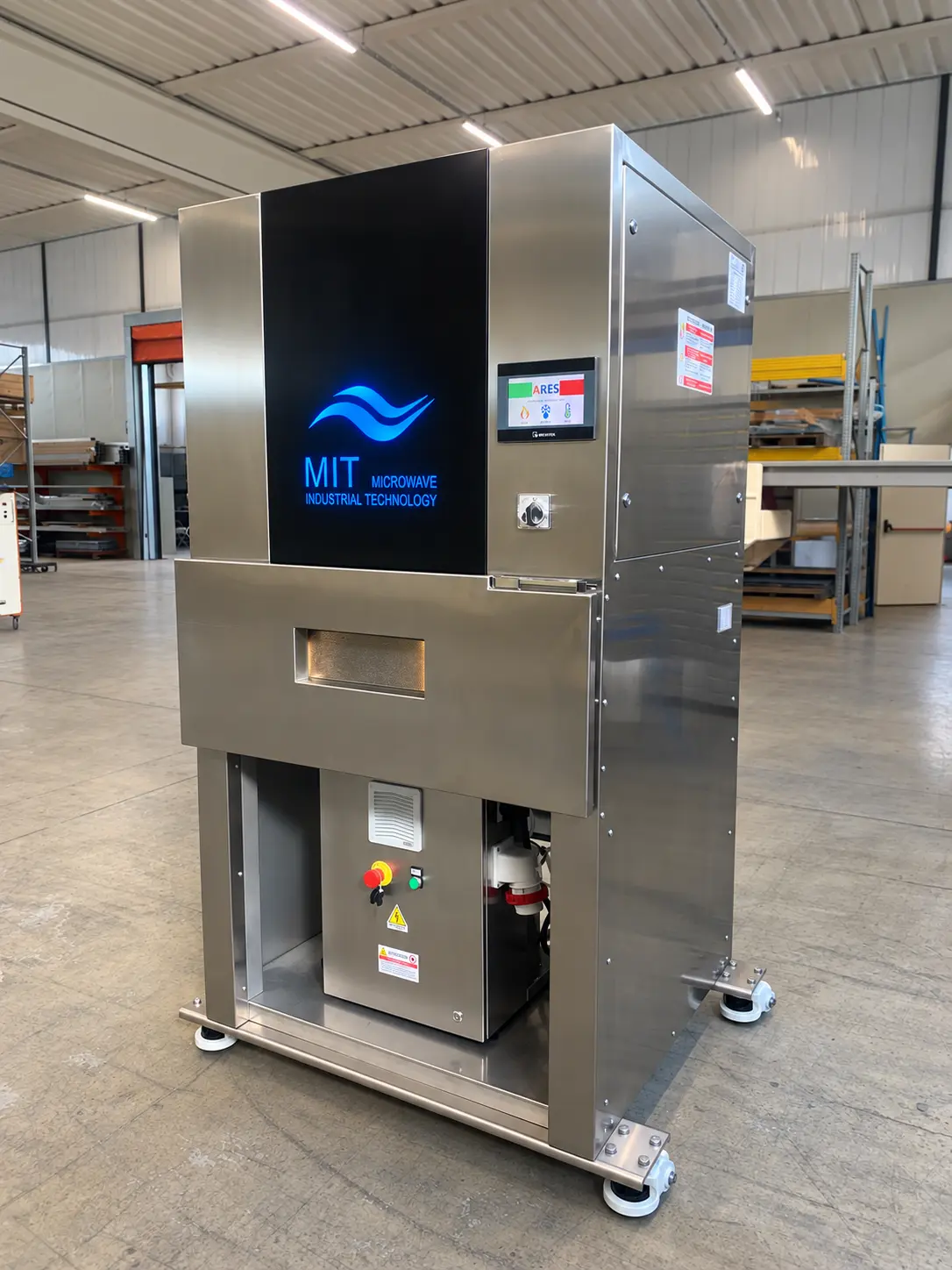

The oven can be equipped with a steam generation system, which allows steam to be introduced directly into the treatment chamber.
This optional function can be used in combination with the other available technologies, increasing flexibility in defining and experimenting with different thermal processes.
The machine is constructed with a stainless steel structure. The treatment chamber is located in the central section, while the microwave generation system, its cooling system and the fume and steam extraction system are housed in the upper section.
The compact configuration integrates the main systems required for treatment and process control within the machine.
The rotating plate carries the product throughout the treatment cycle.

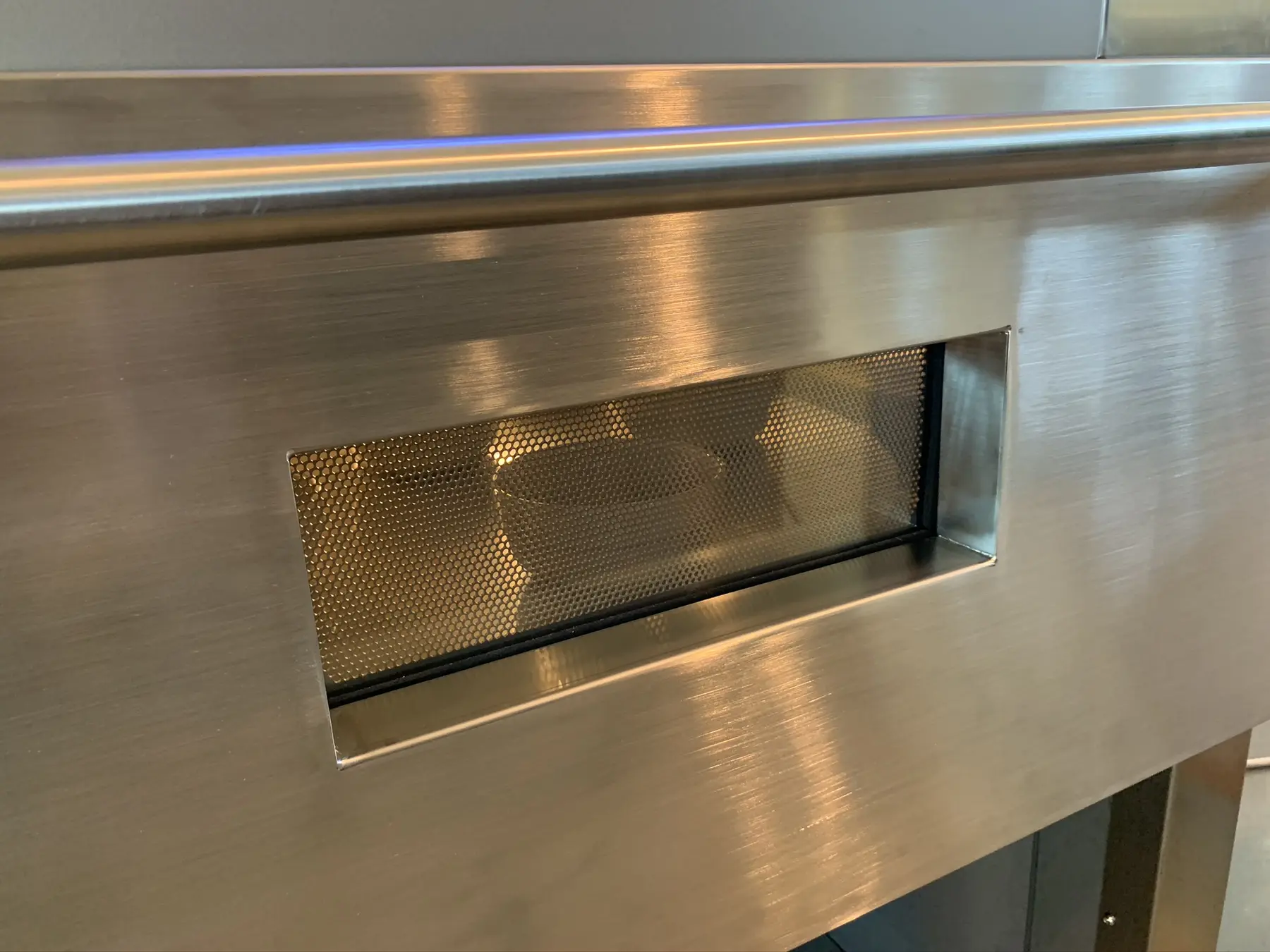

The front door, which can be opened up to 90°, is equipped with a shielded inspection window; active lighting inside the chamber allows the operator to observe the product during processing without opening the oven.

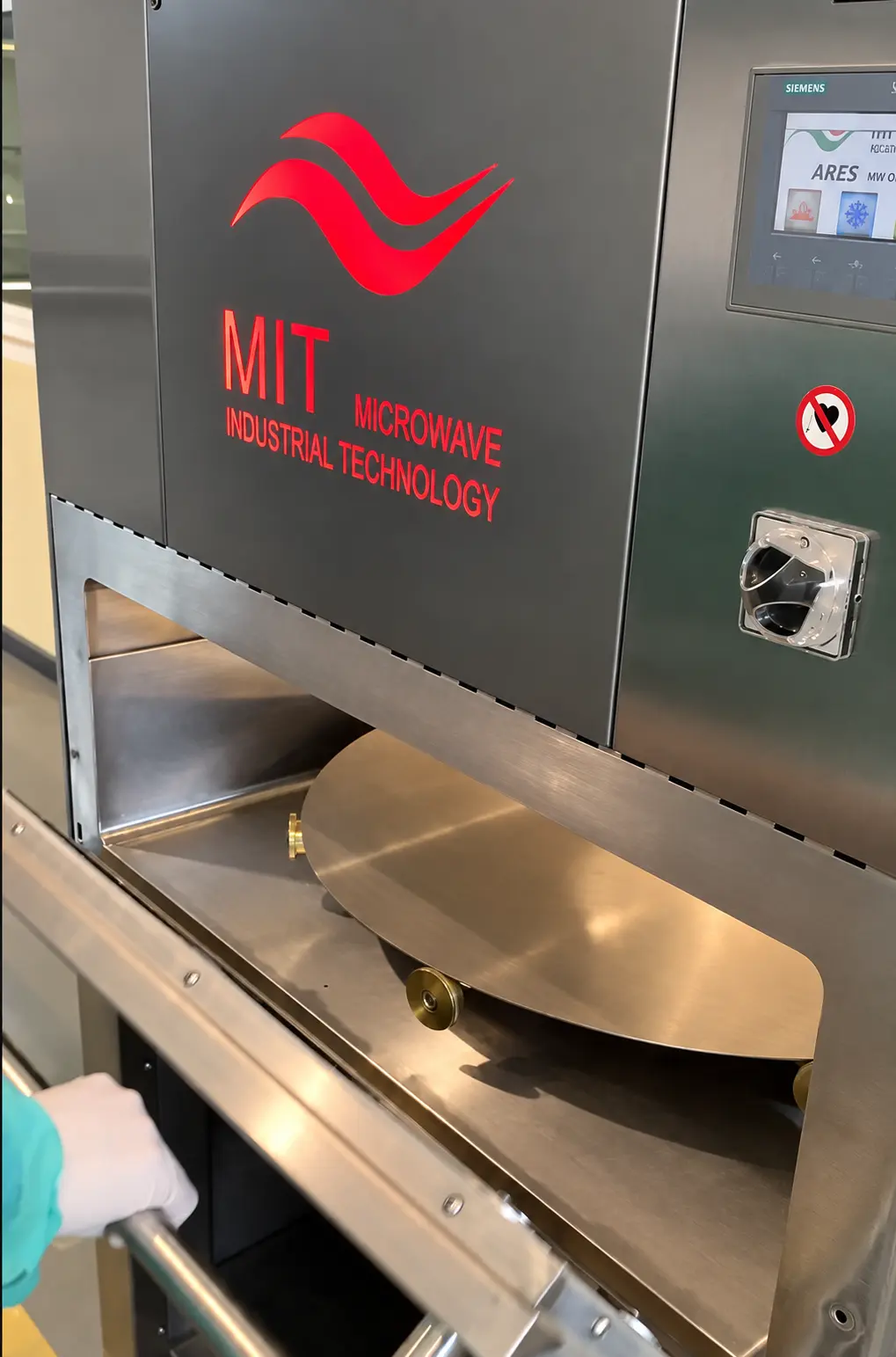

The treatment chamber is equipped with an 830 mm diameter stainless steel rotating plate on which the product is placed. The plate can be removed for cleaning or maintenance.
The product can be processed directly on the plate or in trays, bowls, baking dishes and containers suitable for the intended use. The chamber opening is 917 mm wide and 305 mm high.

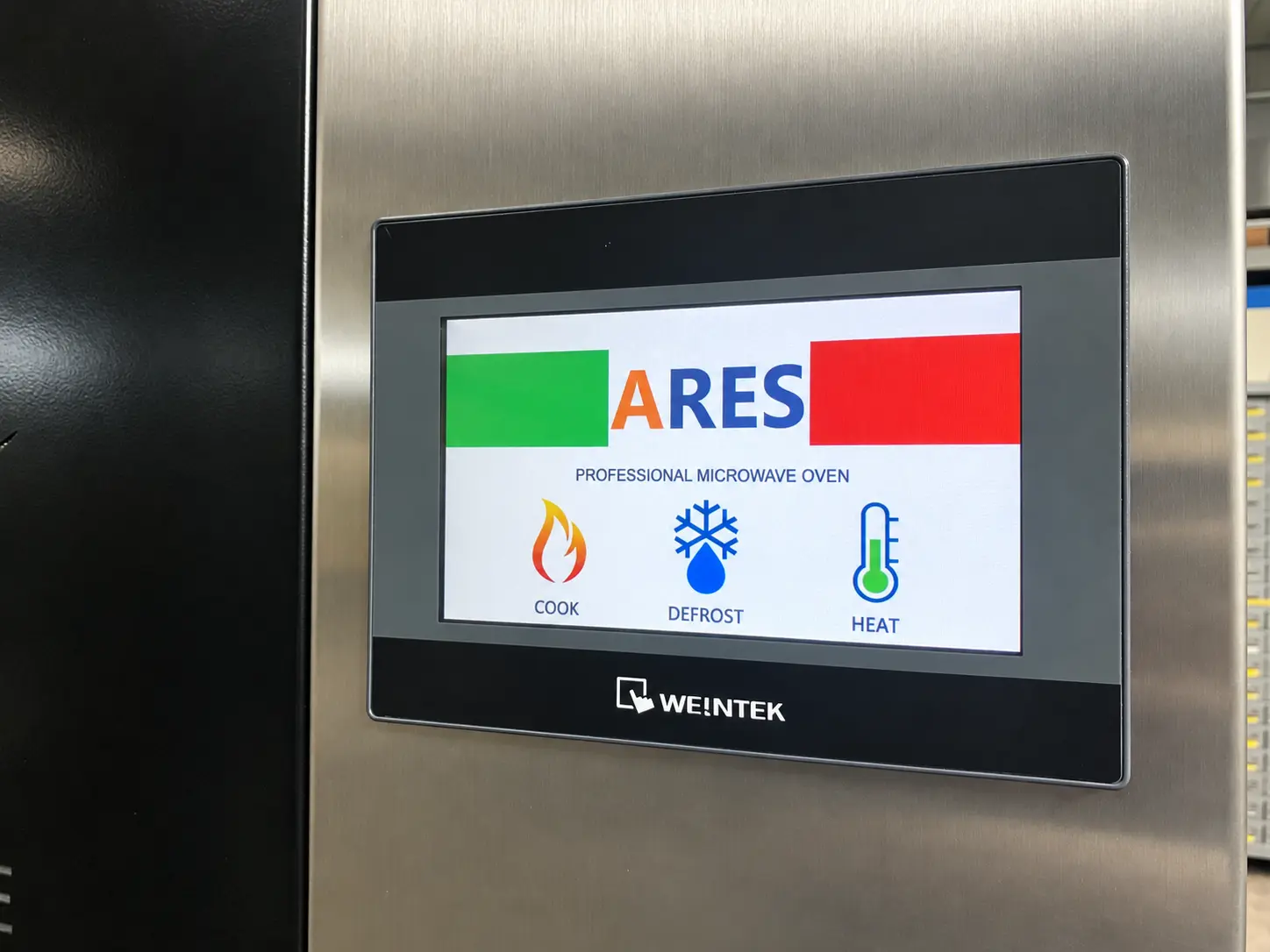

The ARES oven is operated via a touch screen operator panel, which allows the main process parameters to be controlled and monitored.
The operator can adjust the microwave power level, chamber temperature and cycle time, adapting the treatment to the product characteristics and the process to be developed.

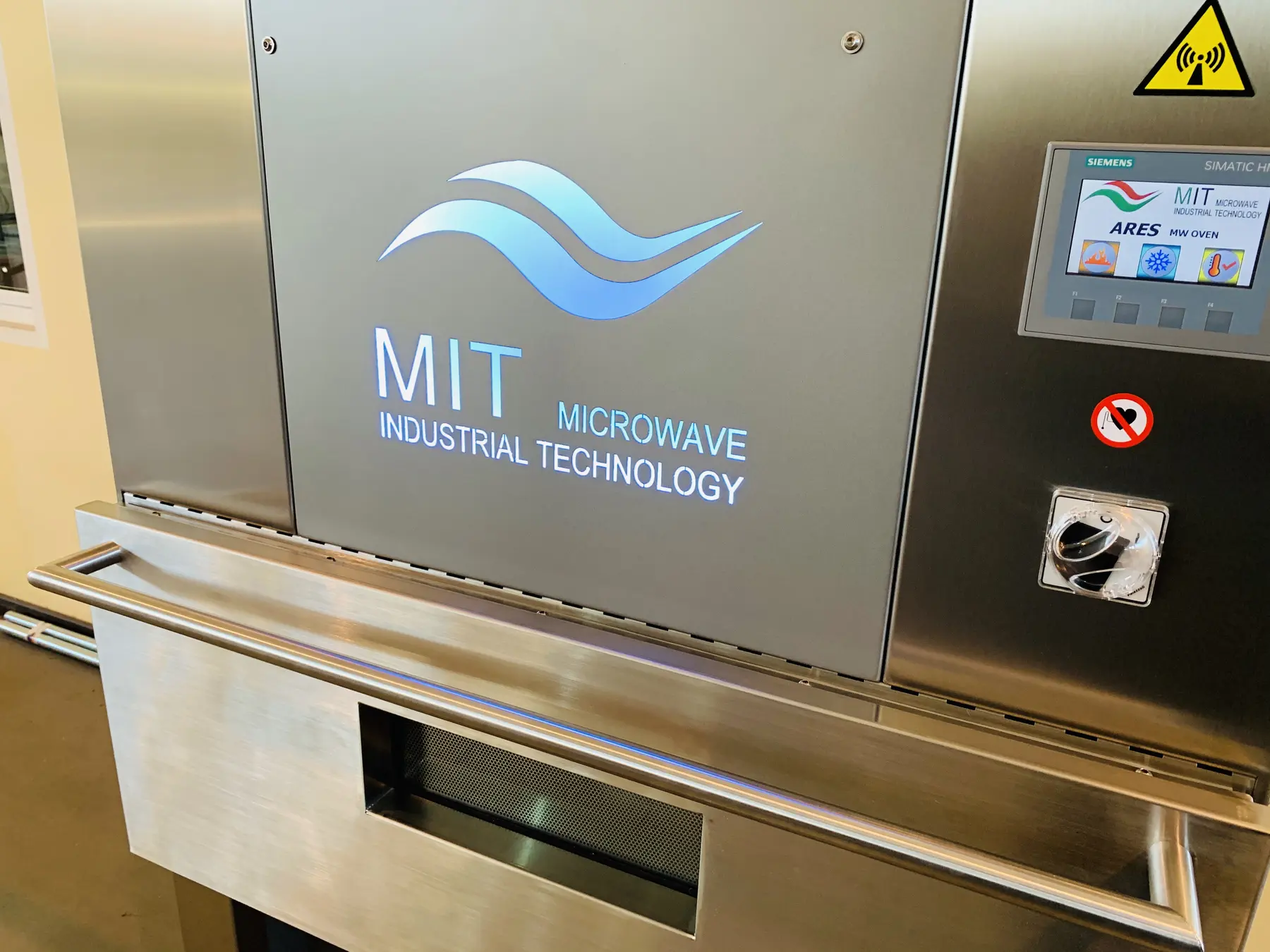

ARES is equipped with a colour-coded visual indicator system that allows the oven's operating status to be identified, even from a distance.
ARES is a plug-and-play oven, designed for multiple applications and to ensure:
Reference ARES configuration.
Desk studies, sizing assessments and energy calculations are carried out before project development. Expected performance is verified through in-house testing on actual products.
Compatible with microwave-safe, non-metallic packaging, without restrictions to proprietary trays, films or valves. Packaging is selected according to the product.
Recipes, traceability, temperature control, data logging, alarms, remote assistance and integration with existing production lines.
Microwave applicators, shielding systems, and command and control systems developed in-house to ensure safety, stability, durability and ease of maintenance.
Accessible components, clear diagnostics, identifiable spare parts and operator training: the system is designed to allow customers to carry out routine maintenance in-house, reducing downtime and dependence on the supplier.
Texture, colour, nutrients, clean-label characteristics and shelf life are verified through testing and validation.
Validated cooking and pasteurisation processes for organic production.
